Capacity:500F
Pressure resistance:16V
The supercapacitor module has the following advantages:
1. Reduce the phenomenon of idle shaking and make it more stable.
2. Enhance power, effectively improve problems such as rolling, dragging, and weak acceleration when climbing.
3. Stabilize voltage, reduce clutter interference, improve electrical life and performance, and improve the sound quality of the car audio system.
4. Protect the battery and original vehicle electrical circuit system, reduce their load and extend their service life.
容量capacity | 500F |
電壓voltage | 16V |
誤差Tolerance | -0+30% |
溫度temperature | -40℃~+65℃/ |
壽命service life | 500000-1000000cycle |
漏電流 Leakage current | 5.2μA/72H |
最大峰值電流Maximum peak current | 200A |

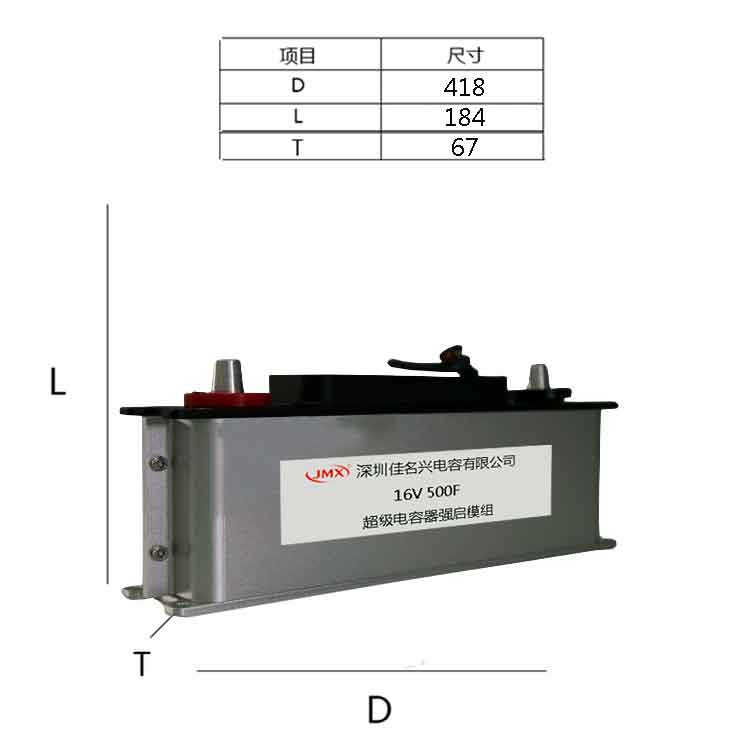

尺寸 size | 418*67*184 |
Product characteristics
① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable
application area

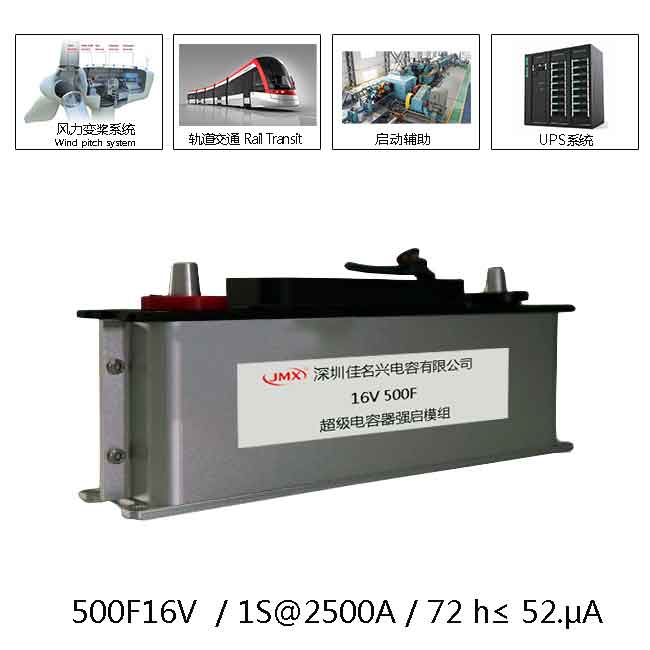

① New energy vehicles ②. Construction machinery ③. Rail transit ④. Power system ⑤. Military equipment ⑥. Industrial equipment
Precautions for use
1. Supercapacitors should be used within the rated voltage and specified operating temperature range, should not exceed 65 ℃, and should be kept away from heat sources exceeding the operating temperature range;
2. Before using the supercapacitor, it is necessary to confirm the positive/negative electrode and prohibit reverse charging. If the positive and negative poles are connected in reverse, it will reduce the charging and discharging performance of the supercapacitor, and lead to heating, leakage, and rapid decline in service life.
3. Before use, clean the positive/negative terminals of the supercapacitor with a dry cloth to avoid excessive contact resistance and reduce the performance of the supercapacitor.
4. It is prohibited to throw supercapacitors into fire or conduct high-voltage heating.
5. It is prohibited to directly contact the supercapacitor with water, oil, acid or alkali.
6. It is prohibited to squeeze, nail, or disassemble supercapacitors.
7. It is prohibited to short-circuit the positive/negative terminals of supercapacitors with voltages above 0.5V;
8. If any odor, discoloration, deformation or other abnormalities are found in the supercapacitor during use or storage, it should be stopped from use.
9. The electrolyte used in supercapacitors is highly volatile, please do not disassemble the supercapacitors at will.
10. Supercapacitors cannot be discarded randomly, please dispose of them according to national environmental standards
