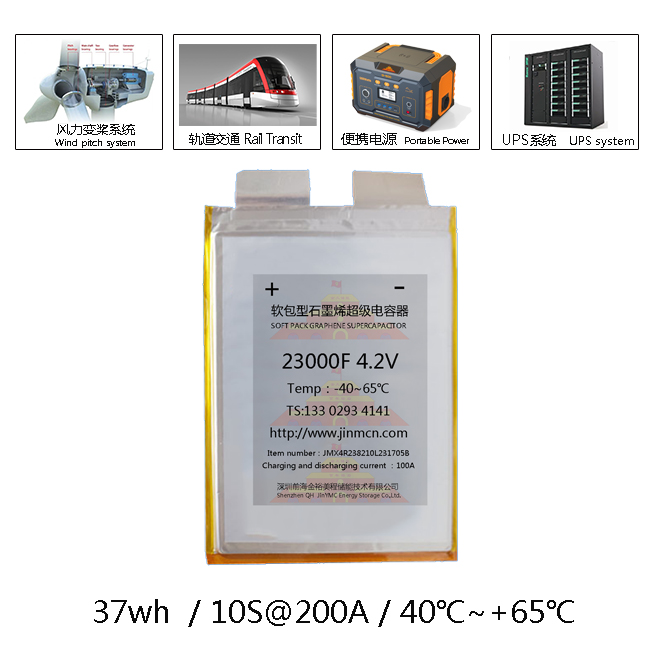

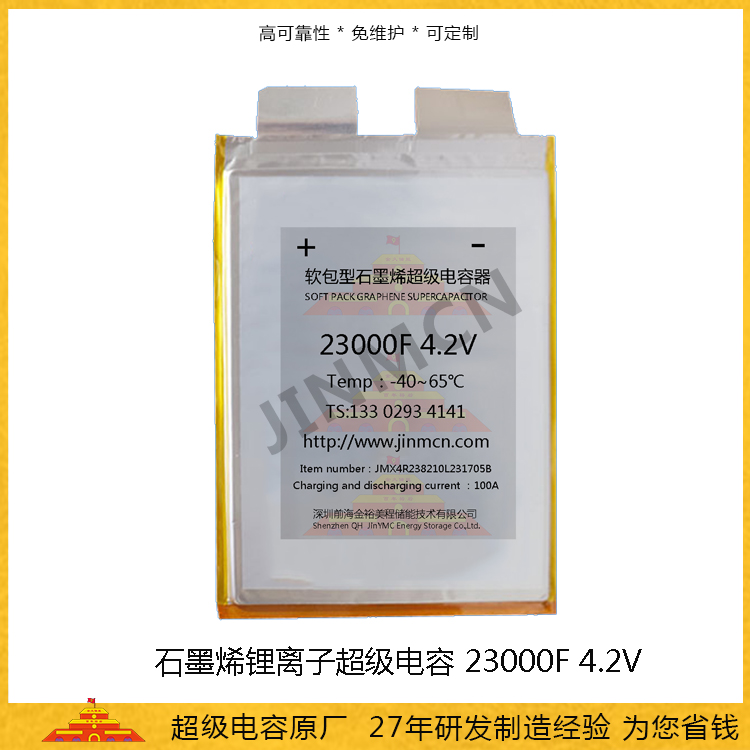

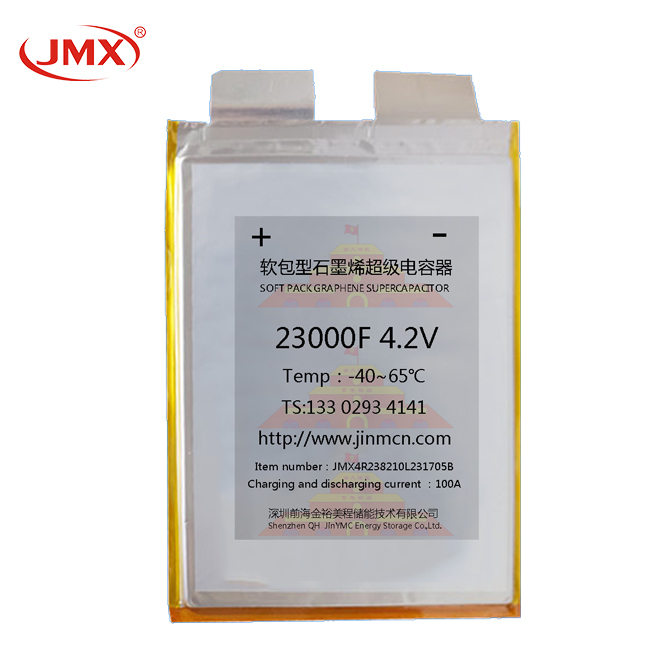

Capacity:23000F
Pressure resistance:4.2V
High magnification lithium-ion supercapacitors have the energy density of lithium-ion batteries, high power characteristics, support 100A continuous output, instantaneous output up to 200A, wide operating temperature, long service life, and can meet the requirements of the vast majority of high-power energy storage solutions

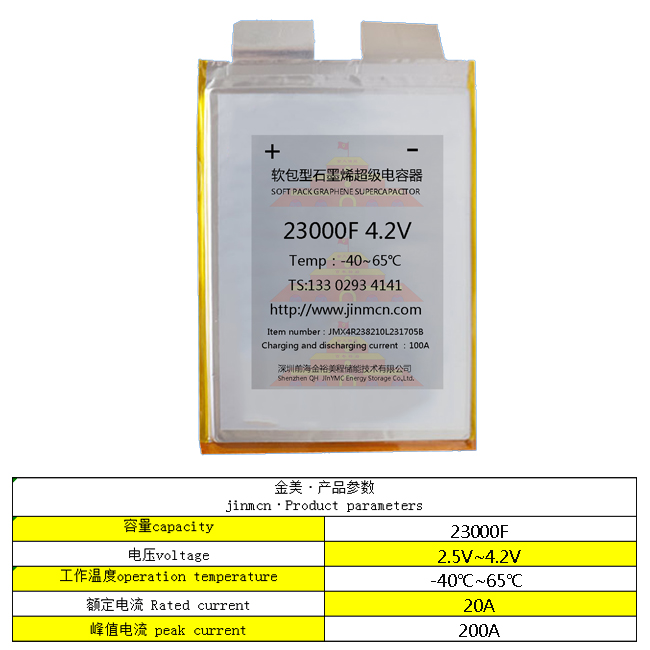

容量capacity | 23000F |
電壓voltage | 4.2V |
誤差Tolerance | -10+10% |
溫度temperature | -40℃~+65℃ |
壽命service life | 20000cycle |
漏電流 Leakage current(72hrs/mA) | / |
最大峰值電流Maximum peak current | 200A |

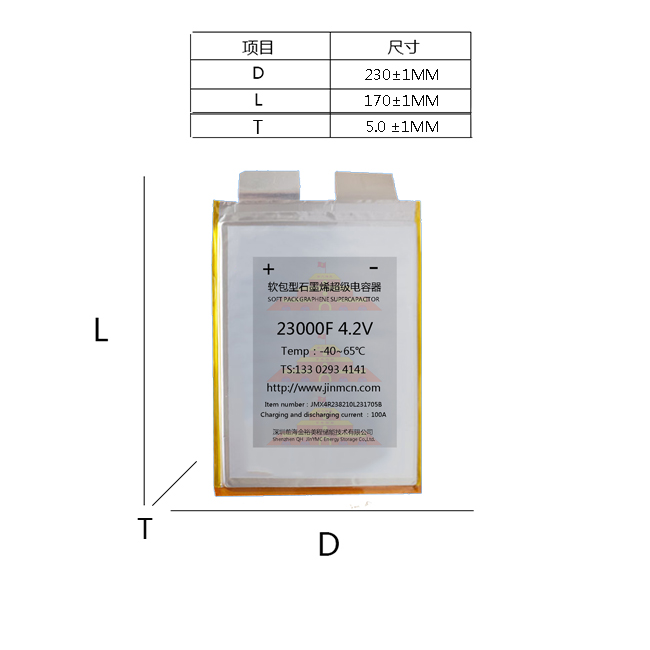

尺寸 size | 230*170*5.0MM(±2MM) |
Product characteristics
① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable
application area
① Robot ②. AGV ③. Electric vehicle ④. Outdoor energy storage ⑤. Home energy storage ⑥. Electric tool ⑦. UPS power supply
Precautions for use
1. Check whether the contact parts of the electrical appliances and supercapacitors are clean. If necessary, wipe them clean with a damp cloth, dry them, and then install them in the correct polarity direction
2. Do not short circuit the charging supercapacitor, otherwise it will be damaged and generate heat, causing the supercapacitor to burn.
3. Do not throw the supercapacitor into water or fire
4. Do not attempt to penetrate supercapacitors with sharp tools
5. It is not allowed to exist in high temperature or humidity environments, which will greatly accelerate the aging rate
6. Do not reverse the insertion of the positive and negative poles, as it may cause swelling or rupture;
7. Do not mix with metal objects, and do not tear off the insulation film wrapped on the outside.
