Product Show

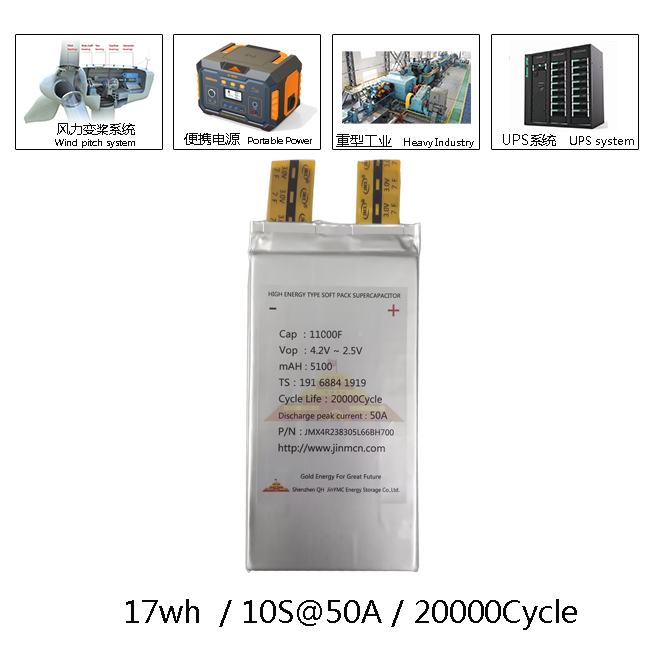

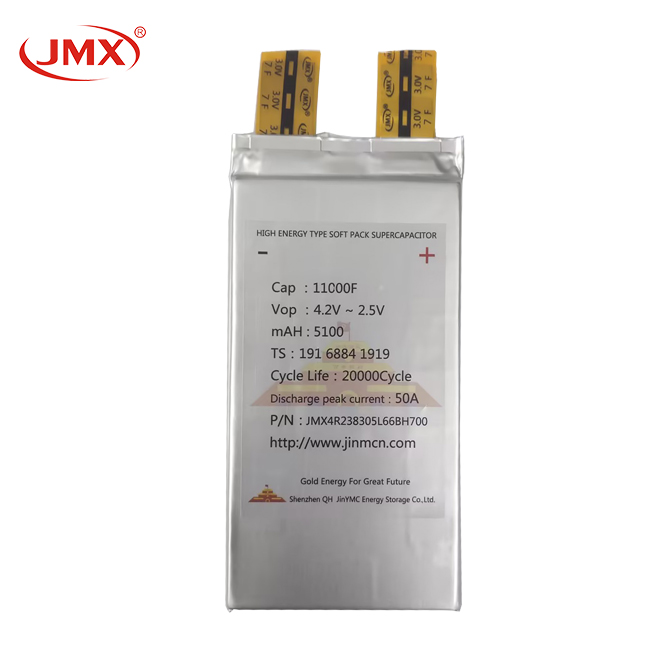

High magnification supercapacitor 11000F 4.2V lithium-ion supercapacitor 17wh flexible graphene battery capacitor

Capacity:11000F

Pressure resistance:4.2V

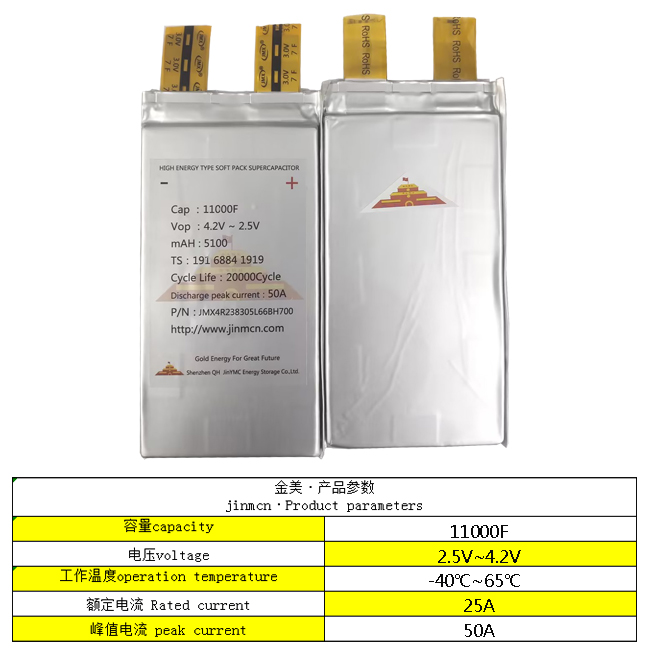

Product Specifications

High magnification lithium-ion supercapacitors have the energy density of lithium-ion batteries, high power characteristics, support 25A continuous output, instantaneous output up to 50A, wide operating temperature, long service life, and can meet the requirements of the vast majority of high-power energy storage solutions


容量capacity

11000F

電壓voltage

4.2V

誤差Tolerance

-10+10%

溫度temperature

-40℃~+65

壽命service life

20000cycle

漏電流 Leakage current(72hrs/mA)

/

最大峰值電流Maximum peak current

50A

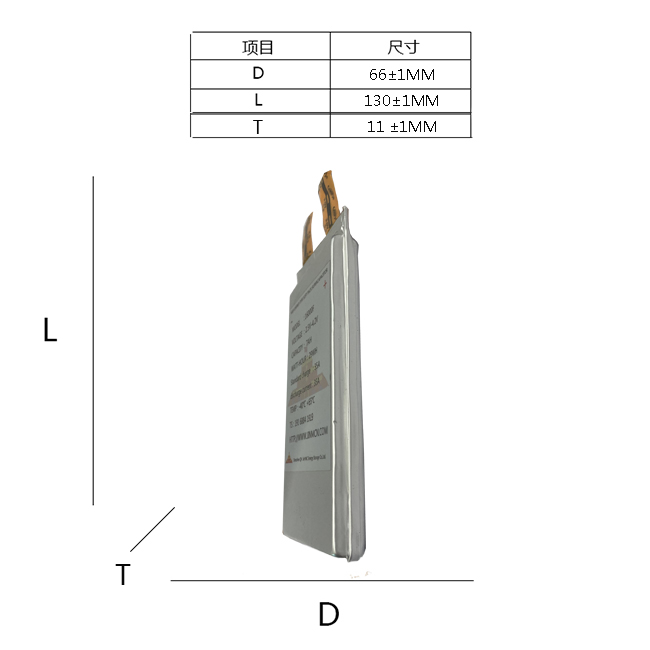

尺寸 size

66*131*11MM(±1MM)




Product characteristics


① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable


application area


① Robot ②. AGV ③. Electric vehicle ④. Outdoor energy storage ⑤. Home energy storage ⑥. Electric tool ⑦. UPS power supply



Precautions for use

1. Check whether the contact parts of the electrical appliances and supercapacitors are clean. If necessary, wipe them clean with a damp cloth, dry them, and then install them in the correct polarity direction

2. Do not short circuit the charging supercapacitor, otherwise it will be damaged and generate heat, causing the supercapacitor to burn.

3. Do not throw the supercapacitor into water or fire

4. Do not attempt to penetrate supercapacitors with sharp tools

5. It is not allowed to exist in high temperature or humidity environments, which will greatly accelerate the aging rate

6. Do not reverse the insertion of the positive and negative poles, as it may cause swelling or rupture;

7. Do not mix with metal objects, and do not tear off the insulation film wrapped on the outside.



Cautions
