Product Show

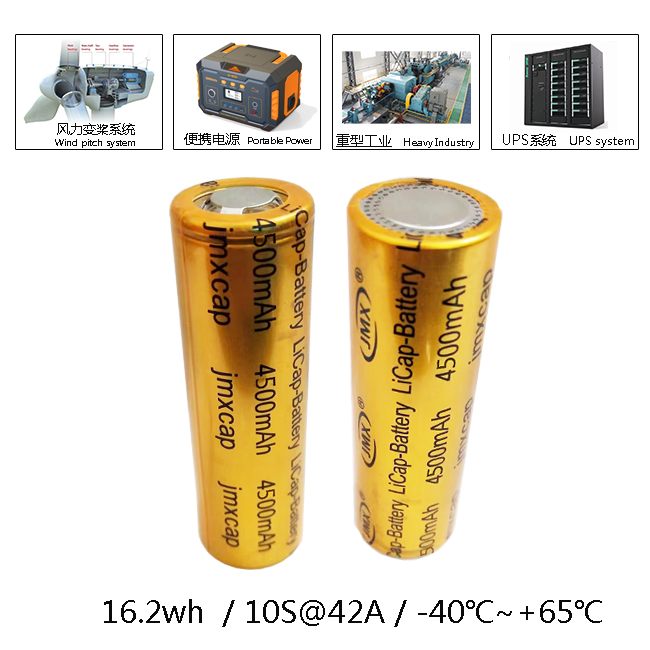

High energy supercapacitor 10000F 4.2V lithium-ion supercapacitor 4500mah 21700 battery capacitor

Capacity:10000F

Pressure resistance:4.2V

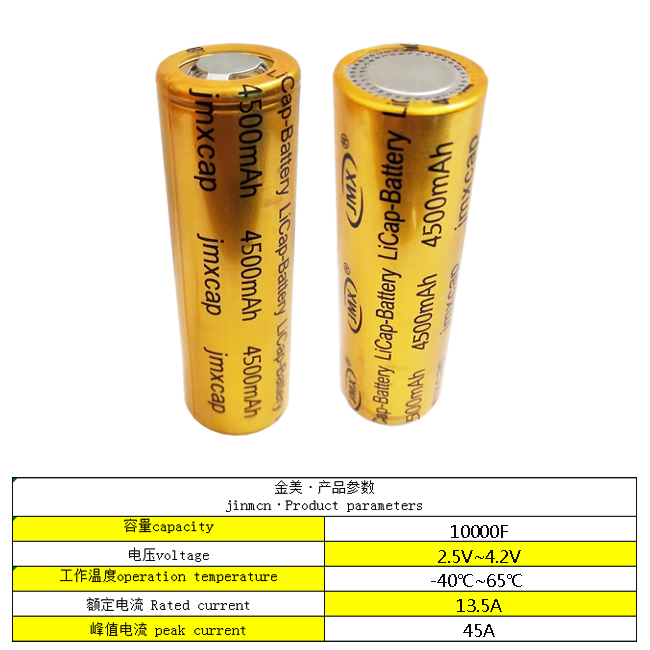

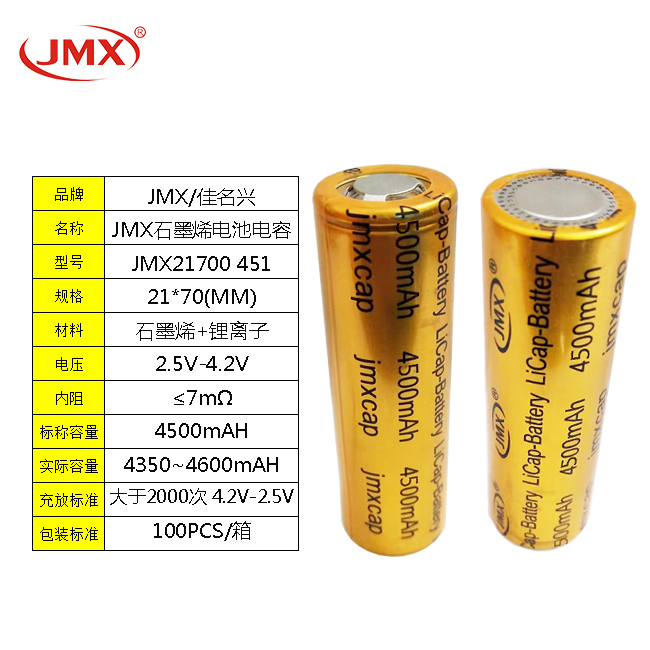

Product Specifications

High energy lithium-ion supercapacitors, with the energy density of lithium-ion batteries and the fast charging and discharging characteristics of supercapacitors, can directly replace 21700 lithium-ion batteries and support 3C output. They have superior performance compared to traditional 21700 lithium-ion batteries and can meet more demanding application environments


容量capacity

10000F

電壓voltage

4.2V

誤差Tolerance

-10+20%

溫度temperature

-40℃~+60

壽命service life

>2000cycle

漏電流 Leakage current(72hrs/mA)

/

最大峰值電流Maximum peak current

42A

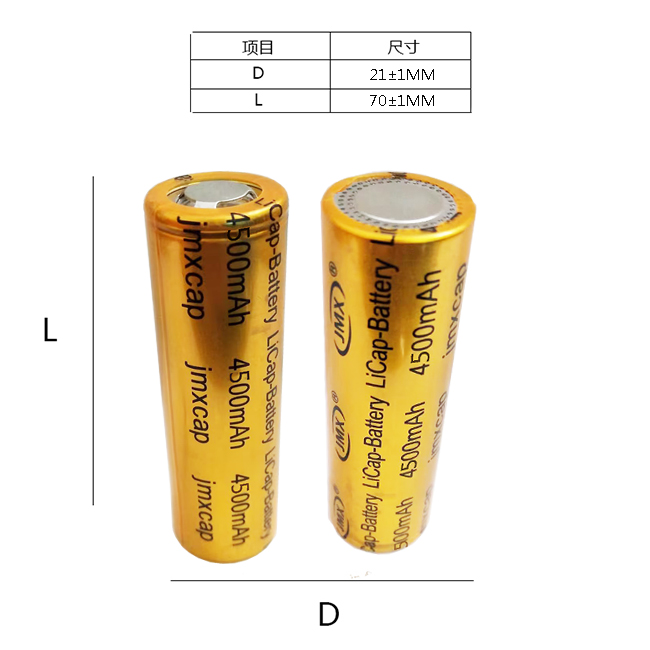

尺寸 size

21.5*70.5MM




Product characteristics


① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable


application area


① Robot ②. AGV ③. Electric vehicle ④. Outdoor energy storage ⑤. Home energy storage ⑥. Electric tool ⑦. UPS power supply



Precautions for use

1. Check whether the contact parts of the electrical appliances and supercapacitors are clean. If necessary, wipe them clean with a damp cloth, dry them, and then install them in the correct polarity direction

2. Do not short circuit the charging supercapacitor, otherwise it will be damaged and generate heat, causing the supercapacitor to burn.

3. Do not throw the supercapacitor into water or fire

4. Do not attempt to penetrate supercapacitors with sharp tools

5. It is not allowed to exist in high temperature or humidity environments, which will greatly accelerate the aging rate

6. Do not reverse the insertion of the positive and negative poles, as it may cause swelling or rupture;

7. Do not mix with metal objects, and do not tear off the insulation film wrapped on the outside.



Cautions
