Product Show

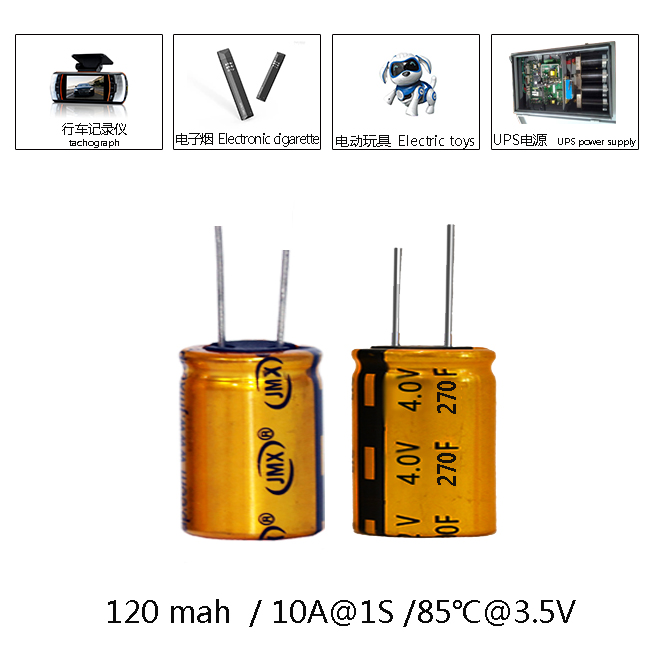

Graphene supercapacitor 270F 3.8V -4.0V lithium ion supercapacitor 120mah 1620 batterycapacitor

Capacity:270f

Pressure resistance:4.0v

Product Specifications

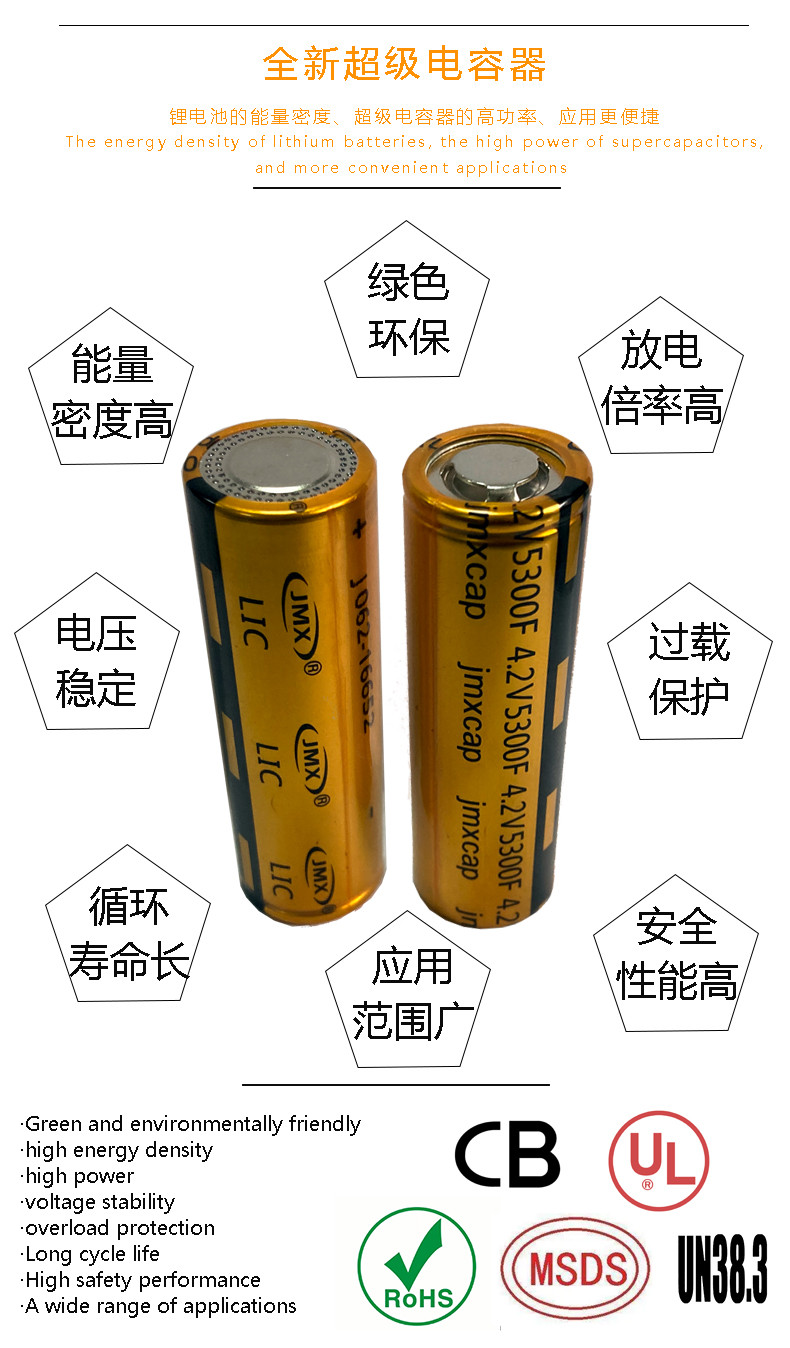

Graphene lithium-ion supercapacitors have the energy density of lithium-ion batteries, and the fast charging and discharging characteristics of graphene supercapacitors can directly replace lithium-ion batteries. They can support instantaneous output of 10A, which is superior to traditional lithium-ion batteries and can meet more demanding application environments


容量capacity

270F

電壓voltage

3.8V/4.0V

誤差Tolerance

±20%

溫度temperature

-20℃~+65 85℃@3.5V

壽命service life

250000cycle

漏電流 Leakage current(24hrs/uA)

30uA

最大峰值電流Maximum peak current

10A

尺寸 size

16*20MM P7.5MM

ESR DC (mΩ)

150




Product characteristics


① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable


application area


① Robot ②. AGV ③. Electric vehicle ④. Outdoor energy storage ⑤. Home energy storage ⑥. Electric tool ⑦. UPS power supply



Precautions for use

1. Check whether the contact parts of the electrical appliances and supercapacitors are clean. If necessary, wipe them clean with a damp cloth, dry them, and then install them in the correct polarity direction

2. Do not short circuit the charging supercapacitor, otherwise it will be damaged and generate heat, causing the supercapacitor to burn.

3. Do not throw the supercapacitor into water or fire

4. Do not attempt to penetrate supercapacitors with sharp tools

5. It is not allowed to exist in high temperature or humidity environments, which will greatly accelerate the aging rate

6. Do not reverse the insertion of the positive and negative poles, as it may cause swelling or rupture;

7. Do not mix with metal objects, and do not tear off the insulation film wrapped on the outside.
