Product Show

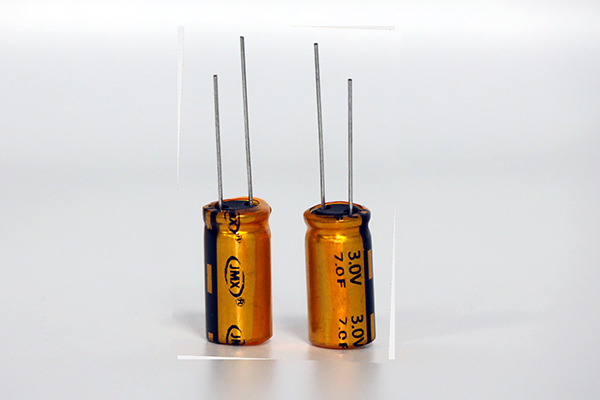

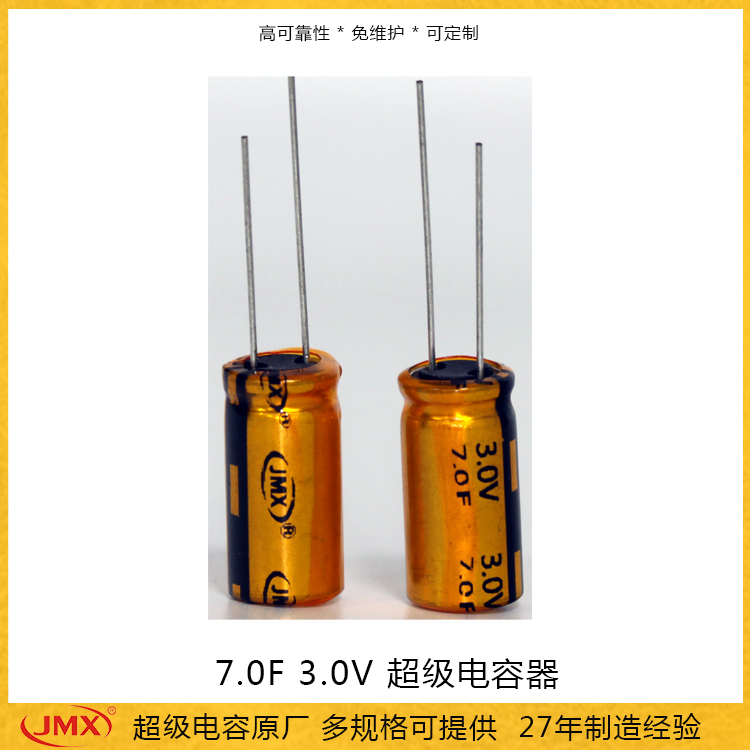

Graphene supercapacitor 3V 7F 1020 energy storage capacitor 0.0088wh farad capacitor 0.81A

Capacity:7F

Pressure resistance:3V

Product Specifications

The structure of the supercapacitor 7F 3V 1020 is based on the principle of dual layer energy storage, which can store a large capacity in a small volume. It is suitable for applications such as high-power compensation and backup power supply, with a maximum energy storage capacity of 0.0088wh


容量capacity

7F

電壓voltage

3.0V

誤差Tolerance

-0+30%

溫度temperature

-40℃~+65℃/ 85℃@2.3V

壽命service life

500000-1000000cycle

漏電流 Leakage current(24hrs/μA)

18μA

最大峰值電流Maximum peak current

4.95A

尺寸 size

10*20




Product characteristics


① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable


application area


① Consumer Electronics ②. Internet of Things ③. Intelligent Instruments ④. Toys ⑤. UPS ⑥. Programmable Switch ⑦. Car Recorder


Precautions for use


1. Supercapacitors should be used within the rated voltage and specified operating temperature range, should not exceed 65 ℃, and should be kept away from heat sources exceeding the operating temperature range;

2. Before using the supercapacitor, it is necessary to confirm the positive/negative electrode and prohibit reverse charging. If the positive and negative poles are connected in reverse, it will reduce the charging and discharging performance of the supercapacitor, and lead to heating, leakage, and rapid decline in service life.

3. Before use, clean the positive/negative terminals of the supercapacitor with a dry cloth to avoid excessive contact resistance and reduce the performance of the supercapacitor.

4. It is prohibited to throw supercapacitors into fire or conduct high-voltage heating.

5. It is prohibited to directly contact the supercapacitor with water, oil, acid or alkali.

6. It is prohibited to squeeze, nail, or disassemble supercapacitors.

7. It is prohibited to short-circuit the positive/negative terminals of supercapacitors with voltages above 0.5V;

8. If any odor, discoloration, deformation or other abnormalities are found in the supercapacitor during use or storage, it should be stopped from use.

9. The electrolyte used in supercapacitors is highly volatile, please do not disassemble the supercapacitors at will.

10. Supercapacitors cannot be discarded randomly, please dispose of them according to national environmental standards
