Product Show

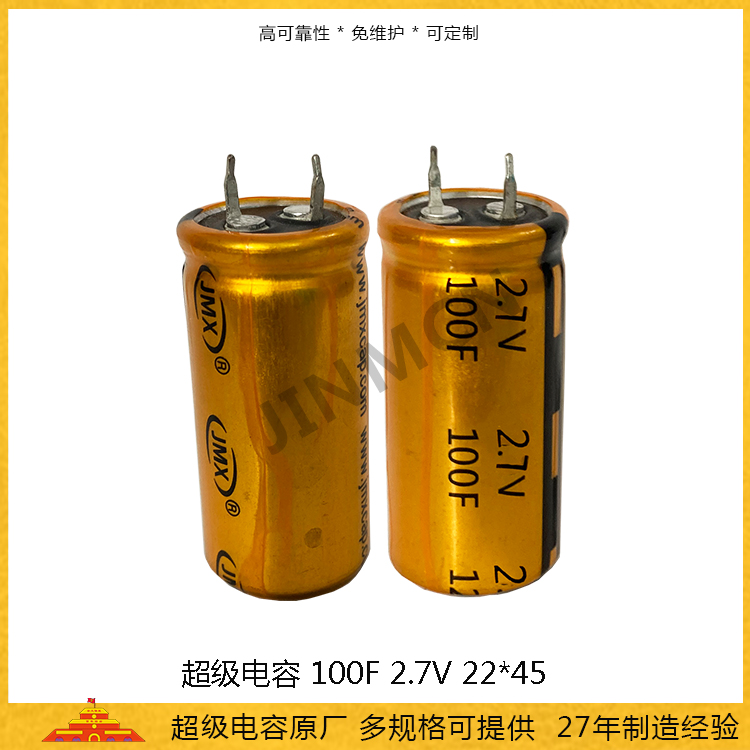

Soldering pin type supercapacitor 2.7V100F 22 * 45 energy storage farad capacitor 61A low internal resistance capacitor 0.1wh

Capacity:100F

Pressure resistance:2.7V

Product Specifications

The welding needle type supercapacitor 2.7V 100F 22 * 45 can instantly release 61A of current, which can be applied in most circuit power compensation power sources. It can be used in an environment of 85 ℃ under a working voltage of 2.5V and can store 0.1wh of energy. The welding needle type leads out


容量capacity

100F

電壓voltage

2.7V

誤差Tolerance

-0+30%

溫度temperature

-40℃~+65℃/ 85℃

壽命service life

500000-1000000cycle

漏電流 Leakage current(72hrs/mA)

0.3ma

最大峰值電流Maximum peak current

61A

尺寸 size

22*45





 Product characteristics


①.Small size and light②.Low leakage current③.Long cycle life④.Green(RoHS compliant)⑤.Safe and reliable

 application area


①.Energy storage systems②.Large UPS③.Military electronic devices④.Variable wind power propellers⑤.Energy-saving elevators⑥.Portable electric tools

 Precautions for use



1. Supercapacitors should be used within the rated voltage and specified operating temperature range, should not exceed 65 ℃, and should be kept away from heat sources exceeding the operating temperature range;

2. Before using the supercapacitor, it is necessary to confirm the positive/negative electrode and prohibit reverse charging. If the positive and negative poles are connected in reverse, it will reduce the charging and discharging performance of the supercapacitor, and lead to heating, leakage, and rapid decline in service life.

3. Before use, clean the positive/negative terminals of the supercapacitor with a dry cloth to avoid excessive contact resistance and reduce the performance of the supercapacitor.

4. It is prohibited to throw supercapacitors into fire or conduct high-voltage heating.

5. It is prohibited to directly contact the supercapacitor with water, oil, acid or alkali.

6. It is prohibited to squeeze, nail, or disassemble supercapacitors.

7. It is prohibited to short-circuit the positive/negative terminals of supercapacitors with voltages above 0.5V;

8. If any odor, discoloration, deformation or other abnormalities are found in the supercapacitor during use or storage, it should be stopped from use.

9. The electrolyte used in supercapacitors is highly volatile, please do not disassemble the supercapacitors at will.

10. Supercapacitors cannot be discarded randomly, please dispose of them according to national environmental standards


Cautions
