Product Show

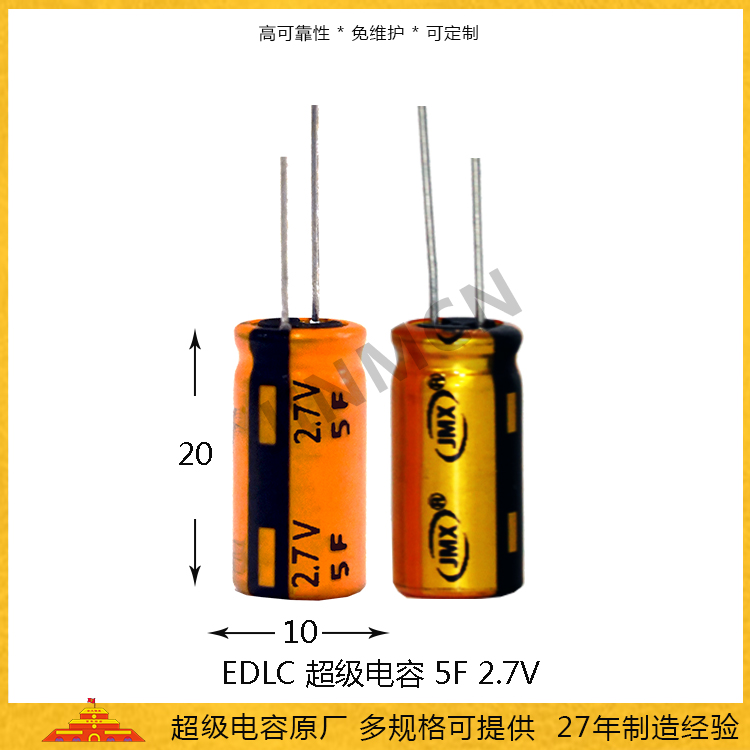

Original best-selling double layer capacitor EDLC supercapacitor 2.7V 5F farad capacitor 10MM * 20MM [price quotation parameters]

Capacity:5F

Pressure resistance:2.7V

Product Specifications

雙電層電容器(EDLC)——通常被稱為“超級電容器”,雙電層電容器(EDLC)是通過利用稱為雙電層的物理現象而顯著增加其存儲量的電容器(電容器)。

Double layer capacitors (EDLC) - commonly referred to as "supercapacitors", are capacitors (capacitors) that significantly increase their storage capacity by utilizing physical phenomena called double layers.


容量capacity

5F

電壓voltage

2.7V

誤差Tolerance

-0+30%

溫度temperature

-40℃~+65℃/ 85℃

壽命service life

500000-1000000cycle

漏電流 Leakage current(72hrs/mA)

0.045ma

最大峰值電流Maximum peak current

3.55A

尺寸 size

10*20




產品特性 Product characteristics

①.工作電壓高 ②.體積小、質量輕 ③.長循環壽命 ④.綠色環保 ⑤.安全可靠

① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable

應用領域 application area

①.消費電子 ②.物聯網 ③.智能儀表 ④.玩具⑤.UPS ⑥.程控交換機 ⑦.汽車記錄儀

① Consumer Electronics ②. Internet of Things ③. Intelligent Instruments ④. Toys ⑤. UPS ⑥. Programmable Switch ⑦. Car Recorder

使用注意事項 Precautions for use

1.超級電容器應在額定電壓和規定工作溫度區間使用,不宜超過 65℃,并遠離超過工作溫度區間的熱源;

2.超級電容器在使用前需確認正/負極,禁止反向充電。若正負極接反,會降低超級電容器的充放電性能,并會導致發熱、泄露和使用壽命快速衰減。

3.超級電容器在使用前用干布對正/負極端子進行清潔,避免接觸電阻過大降低超級電容使用性能。

4.禁止將超級電容器投入火中或進行高壓加熱。

5.禁止將超級電容直接與水、油、酸或堿接觸。

6.禁止擠壓、釘刺和拆解超級電容器。

7.禁止將帶有 0.5V 以上電壓的超級電容器進行正/負極短接;

8.在使用或儲存期間如發現超級電容器有散發氣味、變色、變形或其它反常之處應停止使用。

9.超級電容器所使用的電解液極易揮發,請不要隨意分解超級電容器。

10.超級電容器不能隨意丟棄,需請根據國家環保標準進行處理

1. Supercapacitors should be used within the rated voltage and specified operating temperature range, should not exceed 65 ℃, and should be kept away from heat sources exceeding the operating temperature range;

2. Before using the supercapacitor, it is necessary to confirm the positive/negative electrode and prohibit reverse charging. If the positive and negative poles are connected in reverse, it will reduce the charging and discharging performance of the supercapacitor, and lead to heating, leakage, and rapid decline in service life.

3. Before use, clean the positive/negative terminals of the supercapacitor with a dry cloth to avoid excessive contact resistance and reduce the performance of the supercapacitor.

4. It is prohibited to throw supercapacitors into fire or conduct high-voltage heating.

5. It is prohibited to directly contact the supercapacitor with water, oil, acid or alkali.

6. It is prohibited to squeeze, nail, or disassemble supercapacitors.

7. It is prohibited to short-circuit the positive/negative terminals of supercapacitors with voltages above 0.5V;

8. If any odor, discoloration, deformation or other abnormalities are found in the supercapacitor during use or storage, it should be stopped from use.

9. The electrolyte used in supercapacitors is highly volatile, please do not disassemble the supercapacitors at will.

10. Supercapacitors cannot be discarded randomly, please dispose of them according to national environmental standards






Cautions
