Product Show

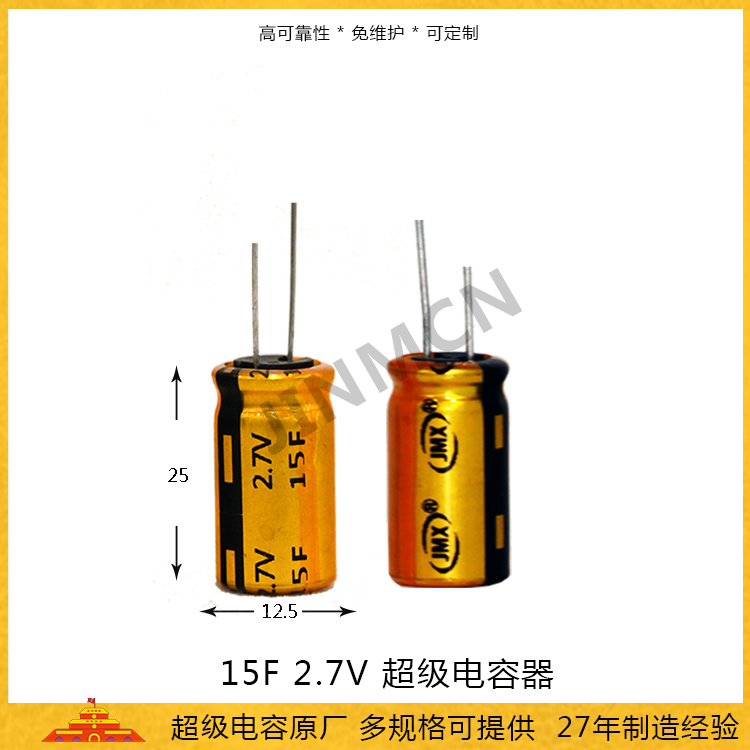

Super capacitor 2.7V 15F farad capacitor The source manufacturer supplies spare power capacitor for smart meter

Supercapacitor is a new type of electronic component energy storage device between traditional capacitor and lithium battery, which has the characteristics of fast charging and discharging of capacitor and large capacity energy storage of battery, supercapacitor is also named as: electrochemical capacitor, double electric layer capacitor, gold capacitor, Faraday capacitor.

Capacity:15F

Pressure resistance:2.7V

Product Specifications

The dual layer supercapacitor 15F 2.7V has the characteristics of small volume and large capacity. Due to the relatively low working voltage, it needs to be connected in series to increase the voltage value before use. The Jinmei energy storage supercapacitor has good capacity consistency and supports better series stability


容量capacity

15F

電壓voltage

2.7V

誤差Tolerance

-0+30%

溫度temperature

-40℃~+65℃/ 85℃

壽命service life

500000-1000000cycle

漏電流 Leakage current(72hrs/mA)

0.1ma

最大峰值電流Maximum peak current

9.88A

尺寸 size

12.5*25




Product characteristics

① High working voltage ②. Small size, light weight ③. Long cycle life ④. Green and environmentally friendly ⑤. Safe and reliable

application area

① Consumer Electronics ②. Internet of Things ③. Intelligent Instruments ④. Toys ⑤. UPS ⑥. Programmable Switch ⑦. Car Recorder


Precautions for use

1. Supercapacitors should be used within the rated voltage and specified operating temperature range, should not exceed 65 ℃, and should be kept away from heat sources exceeding the operating temperature range;

2. Before using the supercapacitor, it is necessary to confirm the positive/negative electrode and prohibit reverse charging. If the positive and negative poles are connected in reverse, it will reduce the charging and discharging performance of the supercapacitor, and lead to heating, leakage, and rapid decline in service life.

3. Before use, clean the positive/negative terminals of the supercapacitor with a dry cloth to avoid excessive contact resistance and reduce the performance of the supercapacitor.

4. It is prohibited to throw supercapacitors into fire or conduct high-voltage heating.

5. It is prohibited to directly contact the supercapacitor with water, oil, acid or alkali.

6. It is prohibited to squeeze, nail, or disassemble supercapacitors.

7. It is prohibited to short-circuit the positive/negative terminals of supercapacitors with voltages above 0.5V;

8. If any odor, discoloration, deformation or other abnormalities are found in the supercapacitor during use or storage, it should be stopped from use.

9. The electrolyte used in supercapacitors is highly volatile, please do not disassemble the supercapacitors at will.

10. Supercapacitors cannot be discarded randomly, please dispose of them according to national environmental standards
