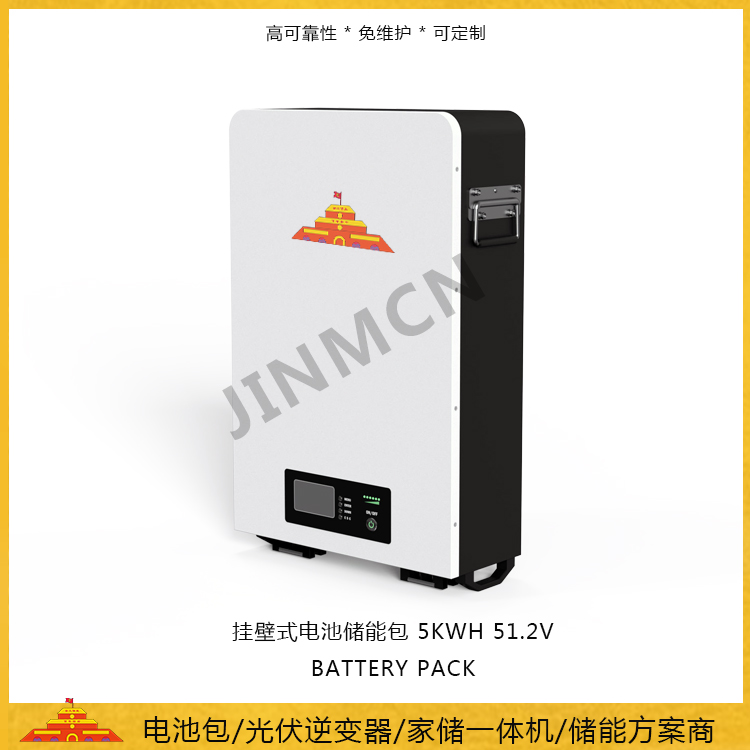

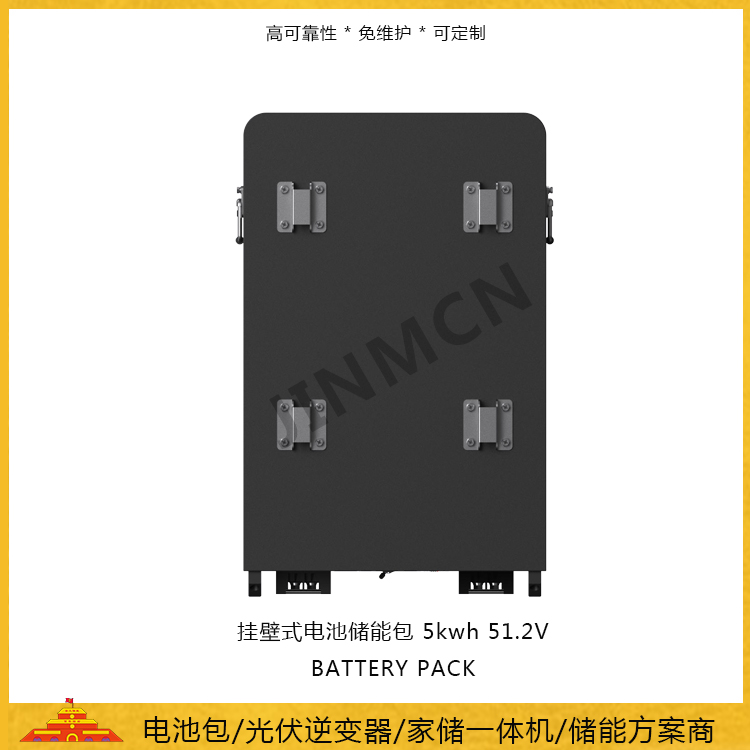

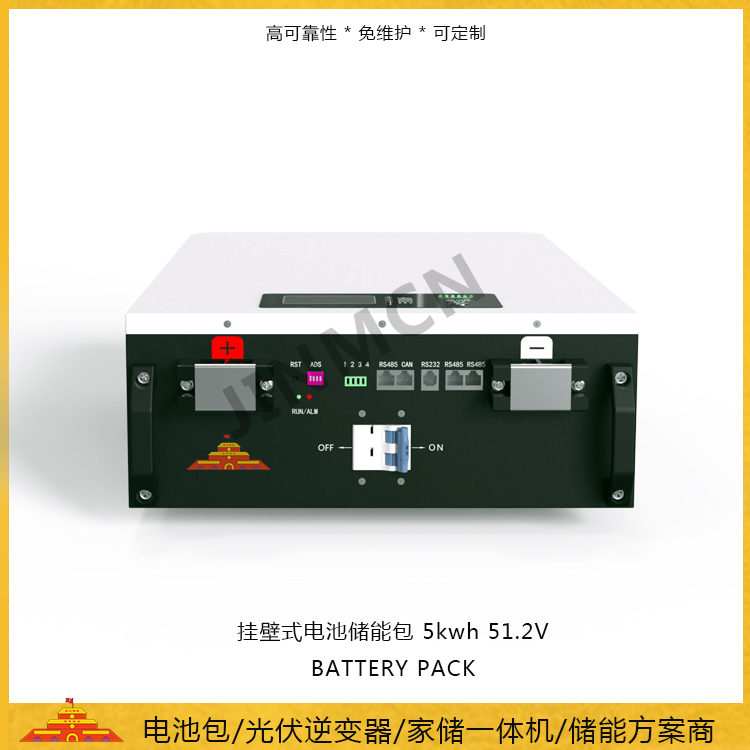

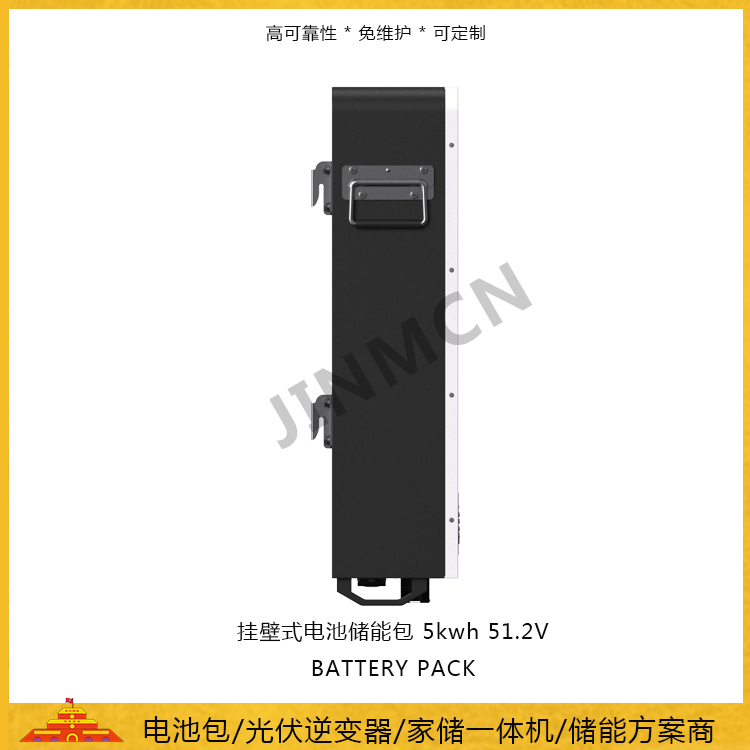

Capacity:5kwh
Pressure resistance:51.2V
This product is a new type of backup power supply for the development of high-tech products, with integration, miniaturization, light, intelligent, standardized, environmental protection and other characteristics, can be widely used in indoor distribution stations, integrated base stations, marginal stations, distributed power supply and other fields.
Nominal Capacity | 100Ah |
Watt Hour | 5120Wh |
Rated voltage | 51.2V |
Operating voltage range | 40V~58.4V |
Standard charging current | 50A |
Standard discharging current | 50A |
Cycle Life | ≥3000 cycles (0.5C charge ,0.5C discharge) 80%DOD; ±25℃ |
Operating Temperature | -20℃~60℃ |
The use of lithium iron phosphate as the positive electrode material for lithium batteries with high safety performance, high safety, high stability, high cycle life, high specific energy, specific power, and superior low-temperature performance, but with large charging and discharging current, there are many other advantages. At the same time, a dedicated high-performance battery management system (BMS) suitable for communication needs is used, which has functions such as charging, over discharge, short circuit, over current (load), temperature, flow, total voltage protection, secondary charging, balance, and various protection functions. It also provides CAN/RS485 communication interface and upper computer for remote monitoring, and can be connected to the base station power environment monitoring system. Intelligent software anti-theft design ensures the lifespan of lithium batteries, Reduce daily usage and maintenance work.
Precautions for use
- During charging, if there is odor and unusual noise, immediately stop charging.
- During discharging, if there is odor, unusual noise, immediately stop charging.
- If there are above phenomenon, please contact the manufacturer, do not disassemble by yourself.
